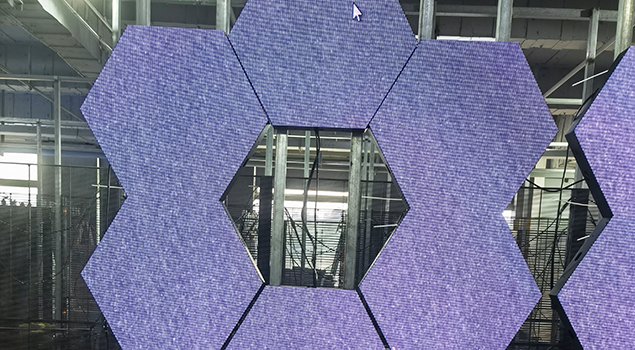

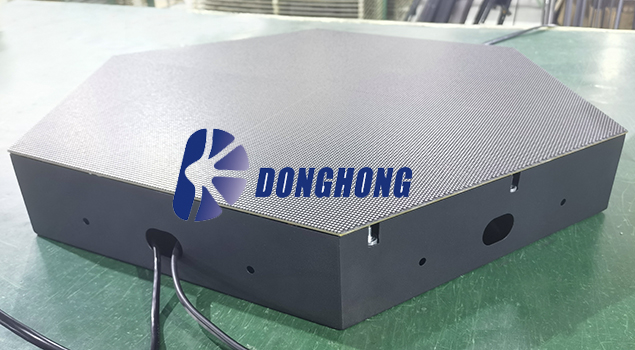

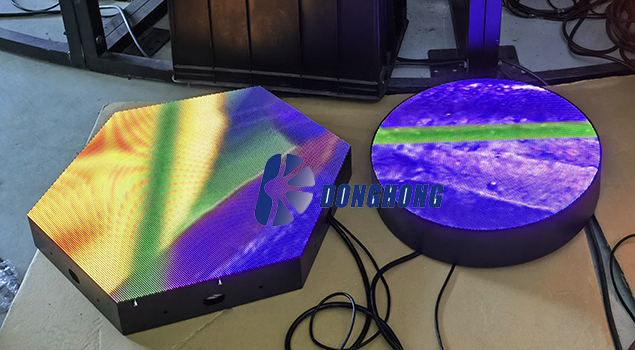

Hexagonal LED Display Screen

*P2.5 Hexagonal shape screen *277*160mm module *640*554mm panel

Features

The irregular-shaped LED display has the following features:

1. Unique Shape: Irregular-shaped LED displays can be customized into various shapes such as spherical, cylindrical, curved, etc., to present a unique visual effect.

2. High Definition Image Quality: Irregular-shaped LED displays utilize high-density pixel arrangement, displaying high-definition image quality for a more delicate and vivid picture.

3. Flexible Installation: Irregular-shaped LED displays are lightweight and flexible, allowing easy installation in various complex scenarios.

4. Excellent Display Performance: Irregular-shaped LED displays have high brightness, high contrast, and wide viewing angles, ensuring excellent display performance in various environments.

5. Strong Impact Resistance: LED irregular-shaped screens are designed with precision structures and manufactured with special processes, making them resistant to external impact damage.

Product specifications

Model	P2.5 Hexagonal LED display
Pixel pitch	2.5mm
LED pixel	1R1G1B
Module size	277*160mm(Triangle/Rectangle）
Pixel type	Full color
LED type	SMD2121
Pixel density	160000 dots/m²
Driving IC	Constant Current Driving
Power supply voltage	5V
Working temperature	-30℃ - +50℃
Panel material	Iron
Panel color	Black
Scan mode	1/32 scan
Panel size	640*554mm
Cabinet resolution	192*192
Module quantity	8 pcs
Brightness	600cd/㎡
Horizontal viewing angle	140 degree
Vertical viewing angle	140 degree
Flatness	＜1mm
Module gap	＜1mm
Cabinet weight	10KG/㎡
Max power/㎡	600W
Average power/㎡	300W
Refresh frequency	3840Hz
Gray level	16 bits
Input signal	RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures	>5000 hours
Lifetime	>100000 hours
