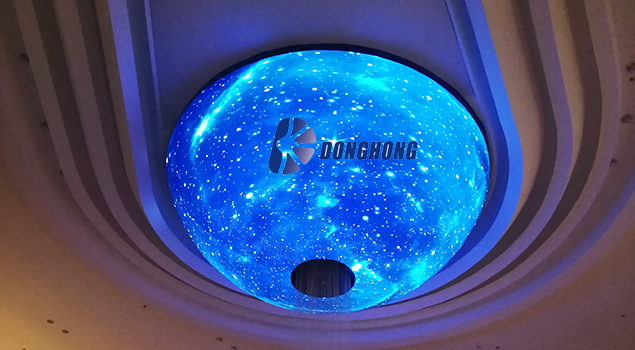

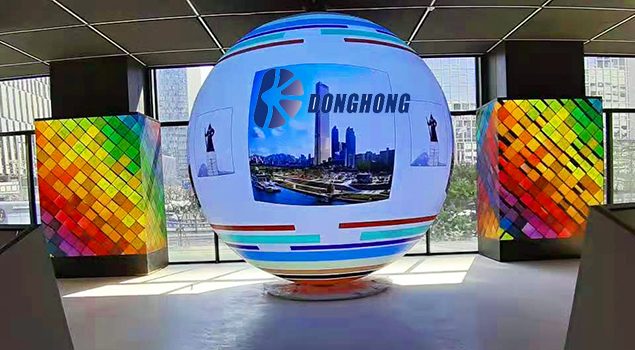

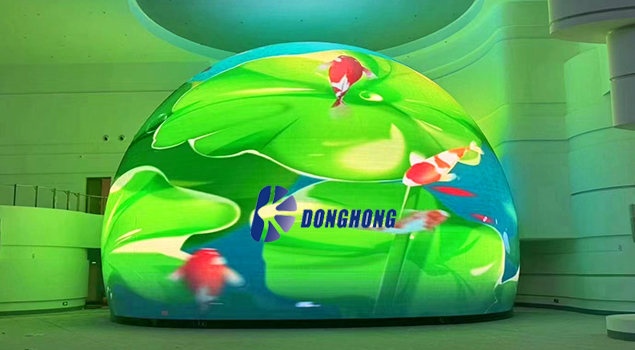

Spherical LED Display Screen

*Spherical shape *Customized module size *Diameter 2 meters or customized

Features


Features of the spherical LED display:

- Suitable for indoor and outdoor use, with transparency, large pixel spacing, and decorative effects for large screen displays.

- Special display units can be assembled into various unique shapes, achieving effects beyond conventional displays.

- Pixel front side sealed with silicone for brightness in outdoor settings, ensuring waterproofing and color coordination with building exteriors.

- Utilizes high-quality silicone wires for temperature resistance, professional waterproof connectors, and IP67 protection for indoor and outdoor environments.

- Uses bar-shaped display units for strong visual impact and high safety.

- Provides a 360-degree viewing angle, enabling full video playback without the viewing angle limitations of flat LED screens.

- Supports full-color display through serial or parallel connection, clear video playback, and synchronous or asynchronous control for full-color video display.

- Equipped with a professional audio-video processing system, supporting various external signal inputs for live broadcasting.

- Customizable diameter with CNC precision for consistent spherical curvature, lightweight design for mobile stages in the rental industry.

- Easy to use without installation upon delivery.

- Lightweight, wind-resistant, easy to install, good heat dissipation, convenient maintenance, waterproof, shock-resistant, low-cost auxiliary installation frame, silent operation without fans.

- Features an all-aluminum structure design like rental LED displays, offering lightweight and sturdy construction with customizable installation methods.

- Tailored solutions based on customer requirements and site conditions for the most suitable spherical LED display solution.



Product specifications


Model Spherical LED display
Pixel pitch 1.86mm
LED pixel 1RGB
Module size Customized
Pixel type Customized
LED type SMD2121
Pixel density(dots/m²) 111111
Driving IC Constant Current Driving
Power supply voltage 5V
Working temperature  -30℃ - +50℃
Panel material Iron
Panel color Black
Scan mode 1/32 scan
Panel size Diameter 2m
Panel resolution 1920*928
Module quantity 321 pcs
Brightness 300~1000cd/
Horizontal viewing angle 360 degree
Vertical viewing angle 360 degree
Flatness <1mm
Module gap <1mm
Cabinet weight 500kg
Max power/㎡ 800W
Average power/㎡ 320W
Refresh frequency 3840Hz
Gray level 16 bits
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours
Lifetime >100000 hours



Flexibility

    Unlike traditional flat LED screens, the spherical screen requires higher flexibility to adapt to its unique shape.

Display Effect

    Provides a 360-degree immersive visual experience, ensuring clear images from any angle.

High Space Utilization

    Compared to traditional flat screens, the spherical screen maximizes space utilization and provides a larger display area.
