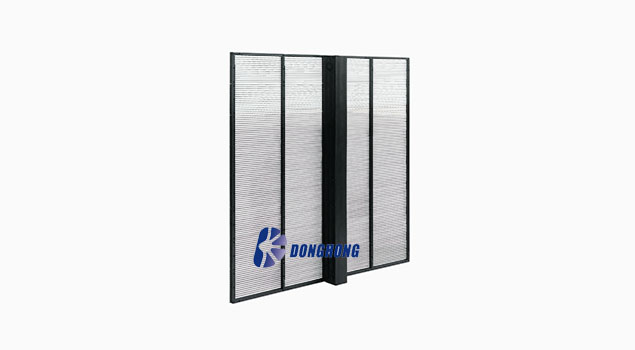

P10.42x10.42 Transparent LED Display

*Indoor P10.42-10.42 *500*125mm module *Aluminum cabinet *1000*1000mm panel

Features


1. High transparency and visual impact: LED transparent screens utilize a special transparent design, achieving extremely high transparency. The projected images and videos appear to be suspended in the air, delivering a stunning visual effect that enhances the overall sense and artistry of performances by seamlessly blending the stage background and foreground.

2. Lightweight and transparent design: The slim and lightweight design of LED transparent screens imposes minimal structural burden on the stage. The transparent design allows the audience to clearly see the stage performances without any obstruction, thereby enhancing the viewing experience.

3. High brightness and contrast: LED transparent screens are characterized by high brightness and contrast, ensuring clear and vibrant visuals even in bright performance environments. This enables the audience to clearly witness the spectacular moments of the performance from any position.

4. Energy-saving and eco-friendly: LED transparent screens utilize highly efficient and energy-saving LED lamps, resulting in lower energy consumption compared to traditional light sources. Additionally, these screens are free from harmful substances, meeting green environmental standards, thereby reducing production costs and aligning with current environmental protection efforts.

5. Waterproof and dustproof: LED transparent screens exhibit excellent waterproof and dustproof performance, allowing for reliable operation in various harsh environments. This significantly enhances their stability and durability while reducing the frequency of maintenance and replacement.

6. Easy installation and disassembly: LED transparent screens are convenient to install and disassemble, enabling quick setup and dismantling of stage scenes. This flexibility provides greater adaptability for performance production, allowing for rapid adjustments to stage layouts as needed.

7. Diverse display effects: LED transparent screens effortlessly support multiple-screen linkage and dynamic special effects, creating a rich visual experience for performances. This offers directors more creative space, leading to a more diverse and personalized stage presentation.




Product specifications


Model P10.42-10.42 Transparent LED display
Pixel pitch 10.42-10.42mm
LED pixel 1R1G1B
Module size 500*125mm
Pixel type Full color
LED type SMD2727
Pixel density 9216 dots/m²
Driving IC Constant Current Driving
Power supply voltage 5V
Working temperature  -30℃ - +50℃
Panel material Aluminum
Panel color Black/Silver/White
Scan mode 1/2 scan
Panel size 1000*1000mm
Cabinet resolution 96*96
Module quantity 16 pcs
Brightness 800-5000cd/㎡
Horizontal viewing angle 140 degree
Vertical viewing angle 140 degree
Flatness <1mm
Module gap <1mm
Cabinet weight 7kg
Max power/㎡ 800W
Average power/㎡ 400W
Refresh frequency 1920/3840Hz
Gray level 16 bits
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours
Lifetime >100000 hours




High resolution and clarity

    LED display offers sharp, detailed images, ensuring clear content display and enhanced visual impact.

Seamless splicing and flexibility

    The display enables smooth image transitions and versatile configurations, adapting to various spatial requirements.

Remote control and management

    LED display allows convenient content updates, centralized control, and efficient maintenance and operation.
