P2.3x3.4 Transparent LED Display

*2.34x3.47mm Pixel pitch, *900*500mm panel, *Thickness of module is less than 3mm

Features


Due to the continuous development of LED display technology, transparent LED displays are prized for their slimness, lack of steel frames, easy and swift installation, and convenient maintenance, as well as their good light transmission and ventilation. LED transparent screens exude a fashionable, aesthetically pleasing, and modern technological vibe. They are primarily used in places with glass curtain walls, such as 4S stores, shopping malls, and brand stores.

In the current environment, transparent LED screens have gradually gained market share, as they can perfectly integrate with buildings, imparting a sense of fashion, diverse colors, and a modern style to the architecture.



Advantages of Transparent LED Display Screens

1. Excellent light transmission: 80% transparency meets indoor lighting needs and preserves the original glass curtain wall's transparency.

2. Simple installation: The lack of a steel frame structure allows for plug-and-play installation, saving significant installation and maintenance costs.

3. Lightweight and slim: Occupying minimal space, with a small volume and light weight of only 15kg/m, without the need to alter the building structure, enabling direct installation onto the glass.

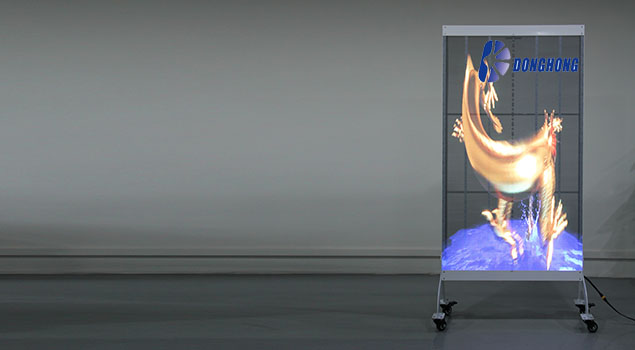

4. Realistic display effect: Unique display effect due to excellent light transmission, creating the impression of advertising images hanging on the screen, effectively attracting attention and delivering impactful advertising.





Product specifications



Model P2.34--3.47 Transparent LED display
Pixel pitch 2.34*3.47mm
LED pixel 1R1G1B
Unit size 450*62.5mm
Unit resolution 192*18mm
Pixel density 122688 pixel/m²
Thickness of module ≤3mm
Transparency rate ≤45%
Power supply voltage 3.8~5V
Working temperature  -20℃ - +55℃
Storage humidity range 20%~65%
Scan mode 1/16 scan
Panel size 900*500mm
Brightness ≥3000cd/m²
Max viewing angle 160 degree
Viewing distance 3~100m
Cabinet weight 12kg/m²
Max power/㎡ ≤800W/
Average power/㎡ ≤360W/
Refresh frequency 3840Hz
Protection level IP43
Lifetime >100000 hours

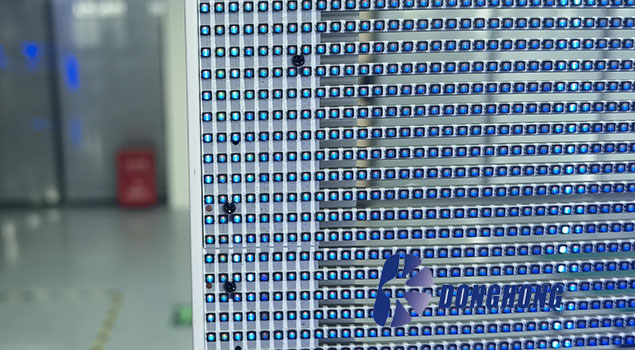

Nice light transmission

    With 45% transparency, these displays meet indoor lighting needs while maintaining the original glass curtain wall transparency.

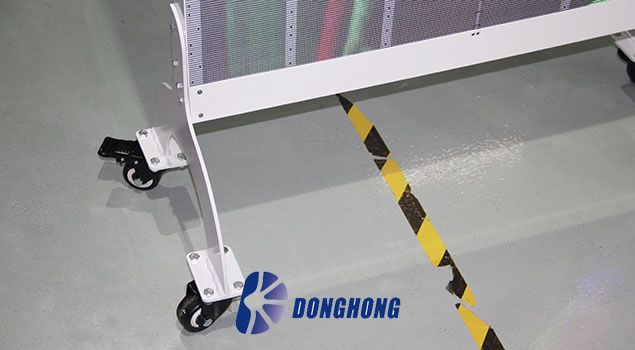

Effortless installation

    The absence of a steel frame structure enables plug-and-play installation, resulting in significant cost savings.

Sleek and lightweight design

    Occupying minimal space, these displays weigh only 12kg/m and require no alteration to building structures.
