P7.81x7.81 Transparent LED Display

*Indoor P7.81-7.81 *500*125mm module *Aluminum cabinet *1000*1000mm panel size

Features


The main features of LED transparent screens include:

1. High transparency: The transparency of LED transparent screens can reach 70% to 95%, allowing for the display of advertisements and information without affecting visibility and natural light.

2. High definition: LED transparent screens have high definition, enabling clear image display.

3. High color reproduction: LED transparent screens have excellent color reproduction, achieving realistic and vivid color representation.

4. High brightness: LED transparent screens have high brightness, enabling clear and vibrant image display even in direct sunlight or bright environments.

5. Wide viewing angle: LED transparent screens have a wide viewing angle, allowing for clear image display from different perspectives.



Application


The application scenarios of LED transparent screens mainly include:

1. Architectural decoration: LED transparent screens can be used in architectural decoration, such as glass curtain walls, windows, and pillars, to integrate with the building and interior space, adding a sense of hierarchy and aesthetics.

2. Exhibitions: LED transparent screens can be applied in exhibitions such as museums, science and technology museums, and shopping malls, providing a more intuitive understanding of exhibit information and enhancing the visitor experience.

3. Advertising media: LED transparent screens are widely used in advertising media, such as outdoor billboards, bus stops, and subway stations, attracting the attention of a large audience and providing visually appealing effects.

4. Stage performances: LED transparent screens can also be used in stage performances, such as concerts and music festivals, allowing the audience to see the stage performance while also viewing performance information on the screen.




Product specifications




Model P7.81-7.81 Transparent LED display
Pixel pitch 7.81-7.81mm
LED pixel 1R1G1B
Module size 500*125mm
Pixel type Full color
LED type SMD2121/1921
Pixel density 16384 dots/m²
Driving IC Constant Current Driving
Power supply voltage 5V
Working temperature  -30℃ - +50℃
Panel material Aluminum
Panel color Black/Silver/White
Scan mode 1/4 scan
Panel size 1000*1000mm
Cabinet resolution 128*128
Module quantity 16 pcs
Brightness 800-5000cd/㎡
Horizontal viewing angle 140 degree
Vertical viewing angle 140 degree
Flatness <1mm
Module gap <1mm
Cabinet weight 7kg
Max power/㎡ 400/800W
Average power/㎡ 200/350W
Refresh frequency 1920/3840Hz
Gray level 14 bits
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours
Lifetime >100000 hours

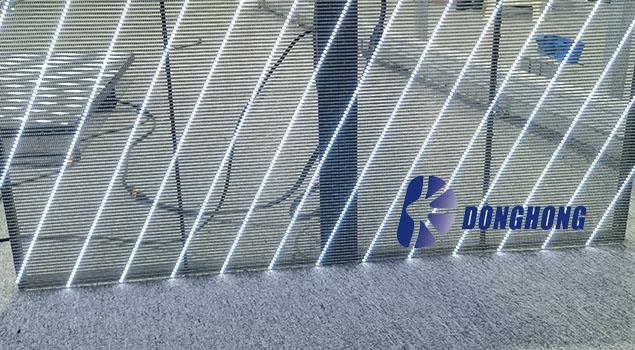

High transparency

    LED transparent screens offer a transparency of 45% to 95%, allowing for the display of content without obstructing visibility or natural light.

High definition

    These screens provide high-definition image display, ensuring clear and sharp visuals.

High color reproduction

    LED transparent screens excel in color reproduction, delivering realistic and vivid color representation.
