Spherical Transparent LED Display

*3.91-7.81mm/8-11mm pixel pitch *Customized module size *Iron cabinet *Diameter of spherical LED display is 2 meters

Features

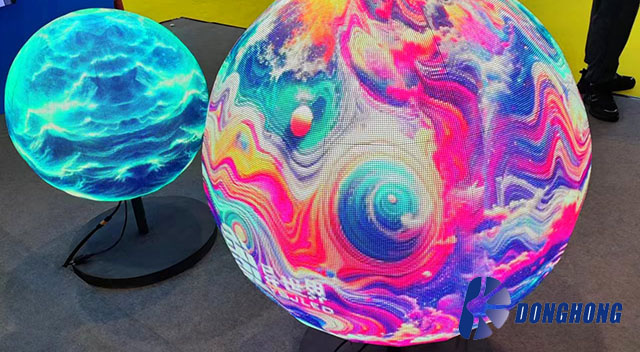

The spherical LED transparent screen, resembling the shape of the Earth, is composed of modules that are flexible and customizable in size. This innovative display can be seen in various locations such as museums, galleries, and shopping malls, captivating audiences with its stunning visual capabilities.



1. Unique Spherical Design: The screen is shaped like a globe, providing a visually striking and immersive display experience.

Flexible Modules: The flexible nature of the modules allows for bending and customization, enabling seamless integration into diverse architectural spaces.

2. Customizable Module Sizes: The modular design allows for tailored module sizes to suit specific installation requirements.

3. Versatile Applications: Suitable for a wide range of venues including museums, galleries, and shopping centers, offering a captivating visual attraction for visitors.

4. Transparency: The transparent screen allows for creative and dynamic content display while maintaining visibility through the screen.


This innovative spherical LED transparent screen combines cutting-edge technology with customizable design, making it a versatile and eye-catching display solution for various indoor environments.



Product specifications


Model P3.91-7.81 P8-11
Pixel pitch 3.91-7.81mm 8-11mm
LED pixel 1RGB 1RGB
Module size Customized Customized
LED type SMD1921/2121 SMD3510/3012
Pixel density(dots/m2) 32768 11735
Pixel type Full color Full color
Scan mode 1/16 scan 1/8 scan
Driving IC Constant Current Driving Constant Current Driving
Power supply voltage 5V 5V
Working temperature  -30℃ - +50℃  -30℃ - +50℃
Panel material Iron case Iron case
Panel color Black Black
Panel size Diameter 2000mm Diameter 2000mm
Panel resolution 804*804 512*416
Brightness 600-1500cd/㎡ 2000cd/㎡
Horizontal viewing angle 360degree 360degree
Vertical viewing angle 360degree 360degree
Module gap <1mm <1mm
Flatness <1mm <1mm
Cabinet weight 380kg 450kg
Max power/㎡ 400/600W 600W
Average power/㎡ 200/300W 300W
Frame rate ≥60Hz/s ≥60Hz/s
Refresh frequency ≥1920Hz ≥1920Hz/3840HZ
Gray level 16 bits 16 bits
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours >5000 hours
Lifetime >100000 hours >100000 hours

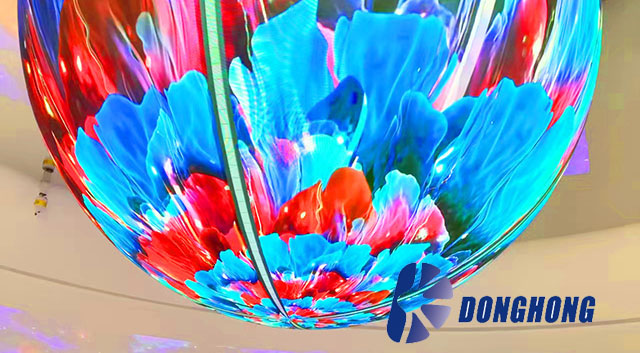

Immersive Visual Experience

    The spherical design creates a captivating and immersive display, engaging viewers with stunning 360-degree visuals.

Flexible and Customizable

    The flexible, bendable modules and customizable sizes allow seamless integration into diverse architectural spaces.

Dynamic Content Display

    he transparent screen enables creative and dynamic content display while maintaining visibility through the screen.
