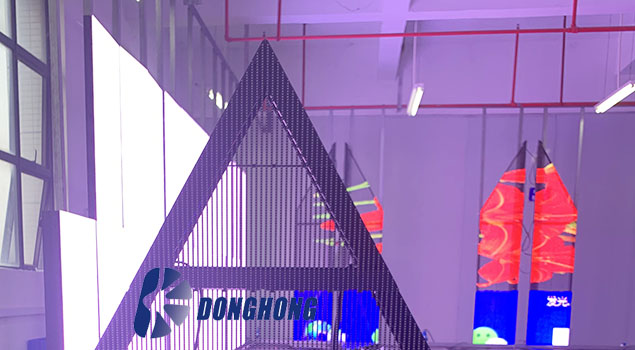

Triangular Transparent LED Display

*3.91-7.81mm pixel pitch *1300*1126mm cabinet *375.21*216.56mm/370.75*216.56mm triangular module *Profiled aluminum cabinet

Features


In the ocean of technology, display screens have always been regarded as crucial vehicles for conveying information. From the early days of liquid crystal displays to OLED technology, the continuous evolution of display technology has greatly transformed the way we receive and process information. Now, a novel triangular LED display screen is bringing revolutionary changes to this field. Let's explore its unique applications and the surprises it brings to us.

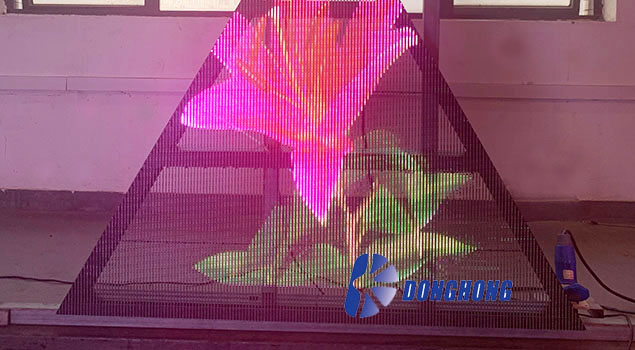

1. Fusion of Fashion and Art

Compared to traditional rectangular or circular display screens, the triangular LED display screen is more unique and stylish. It can be showcased as an art piece in various settings and seamlessly integrated with architecture and interior design, adding a modern and creative touch to spaces.

2. Greater Display Flexibility

Triangular LED display screens can be freely combined to create various shapes and designs. Whether for large outdoor advertising or small desktop decorations, they can be easily implemented. This provides brands and designers with limitless creative space, making information delivery more vivid and appealing.

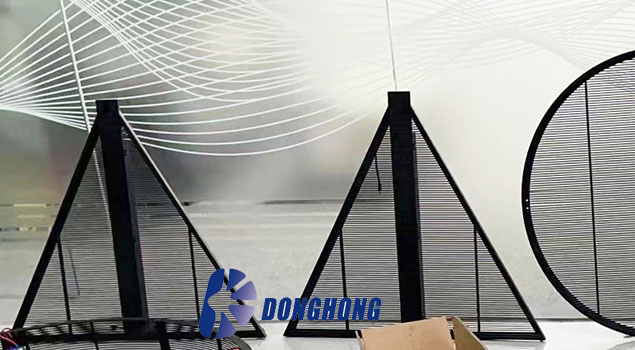

3. Energy Efficiency and Environmental Friendliness

Compared to other LED technologies, triangular LED display screens are more energy-efficient and environmentally friendly in their design and production processes. They use fewer materials and achieve lower power consumption, saving resources and reducing carbon emissions.

4. Enhanced Information Visibility

Traditional display screens may not always capture people's attention in certain contexts. However, the unique form of triangular LED display screens makes it easier to attract attention, leading to more efficient information delivery.

5. Multi-angle Display

The triangular structure of LED display screens allows for the presentation of information on multiple faces, providing possibilities for occasions requiring information display in multiple directions, such as traffic signage or advertising displays.



The innovative triangular LED display screen is not only a technological breakthrough, but also a versatile and sustainable solution that elevates the visual experience and communication efficiency across various domains.



Product specifications



Model P3.91-7.81
Pixel pitch 3.91-7.81mm
LED pixel 1R1G1B
Module size 375.21*216.56mm、370.75*216.56mm triangle
LED type SMD1921
Pixel density(dots/m2) 32768
Pixel type Full color
Transparency rate 62%
Driving IC Constant Current Driving
Power supply voltage 5V
Working temperature  -20℃ - +65℃
Panel material Profiled aluminum
Panel color Black/Silver
Cabinet size 1300*1126mm
Cabinet resolution 288*168
Brightness 1500~4500cd/㎡
Horizontal viewing angle 160 degree
Vertical viewing angle 140 degree
Module gap <1mm
Viewing distance >4m
Cabinet weight 8kg
Max power/㎡ 800W
Average power/㎡ 320W
Frame rate ≥1920Hz
Refresh frequency 1920/3840Hz
Gray level 16 bits
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours
Lifetime >100000 hours




Fusion of fashion and art

    Unique, stylish, integrates with architecture and interior design, adding modern and creative touch to spaces.

Energy efficiency and environmental friendliness

    Uses fewer materials, achieves lower power consumption, saving resources and reducing carbon emissions.

Enhanced information visibility

    Unique form attracts attention, allows information presentation on multiple faces, increasing communication efficiency.
