Home Products Outdoor Transparent Series

P15.625x15.625 Grid LED display

*P15.625 outdoor grid LED screen *500*1000mm panel *10*1000mm module *Color is black or customized

Features


The LED grid screen is a versatile outdoor LED display screen that serves a multitude of purposes, including advertising, promotion, and information dissemination. Distinguished by its robust design and advanced features, the outdoor waterproof grid screen stands as a reliable solution for outdoor environments, capable of withstanding harsh weather conditions while delivering exceptional visual performance.



Key Features:

1. High Waterproof and Dustproof Capability: The outdoor waterproof grid screen offers superior protection against water and dust, ensuring uninterrupted operation even in extreme weather conditions such as heavy rain and strong winds.

2. Lightweight and Low Wind Load: With a lightweight design and low wind load, the LED grid screen is well-suited for outdoor installation, providing stability and durability in various outdoor settings.

3. Simple Structure and Easy Installation: The grid screen's straightforward structure facilitates convenient installation, making it an ideal choice for outdoor applications where efficiency and ease of setup are paramount.

4. Self-Cooling and High Integration: Equipped with self-cooling capabilities and high integration, the LED grid screen ensures efficient heat dissipation and streamlined installation, enhancing overall performance and reliability.

5. High Brightness, Refresh Rate, and Grayscale: The screen's high brightness, refresh rate, and grayscale characteristics enable it to deliver exceptional display performance, even in environments with strong daylight, ensuring vivid and clear visuals at all times.

6. High Transparency for Versatile Installation: Its high transparency allows for installation on glass curtain walls and low-load-bearing walls, preserving natural lighting while creating a visually stunning impact.



The LED grid screen's robust design and advanced features make it a standout choice for outdoor applications, offering unparalleled durability and performance. Its ability to withstand extreme weather conditions, coupled with its high transparency and versatile installation options, makes it an ideal solution for a wide range of outdoor settings.



Product specifications


Model P15.625-15.625 Grid LED display
Pixel pitch 15.625-15.625mm
LED pixel 1R1G1B
Module size 10*1000mm
Pixel type Full color
LED type DIP346 high brightness lights
Pixel density 4096 dots/m²
Driving IC Constant Current Driving
Power supply voltage 5V
Working temperature  -30℃ - +50℃
Panel material Aluminum
Panel color Black
Scan mode Static
Panel size 500*1000mm
Panel resolution 32964
Module quantity 32 pcs
Brightness 10000cd/㎡
Horizontal viewing angle 140 degree
Vertical viewing angle 110 degree
Flatness <1mm
Module gap <1mm
Cabinet weight 10.5kg
Max power/㎡ 800W
Average power/㎡ 350W
Refresh frequency 3840Hz
Gray level 16 bits
Protection level IP65
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours
Lifetime >100000 hours

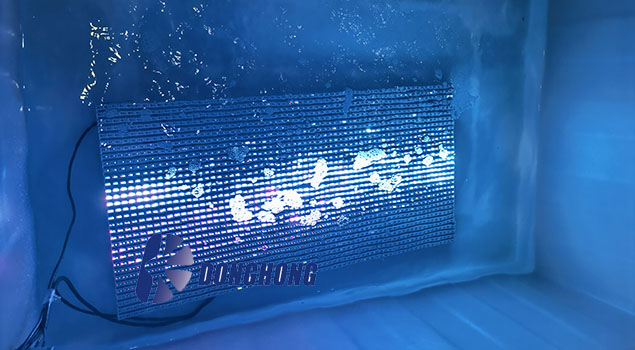

High Waterproof and Dustproof Capability

    Superior protection against water and dust, ensuring uninterrupted operation in extreme weather conditions.

Lightweight Design and Low Wind Load

    Provides stability and durability in outdoor settings, offering ease of installation.

Simple Structure and Easy Installation

    Straightforward design for convenient setup, ideal for outdoor applications.

High Brightness, Refresh Rate, and Grayscale

    Exceptional display performance, ensuring vivid and clear visuals even in strong daylight.
