P7.81x7.81 Outdoor Transparent LED display

*Outdoor P7.81-7.81 *500*125mm module *1000*500mm panel *Die-casting aluminium cabinet

Features

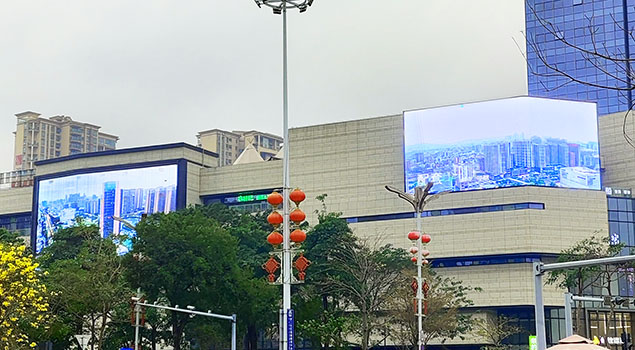

Outdoor transparent screens have emerged as a novel display solution in advertising and retail shop windows, owing to the continual advancement and development of technology. In comparison to conventional advertising and window displays, outdoor transparent screens offer consumers a more captivating visual experience, characterized by their unique transparency and high-definition display capabilities.



Key features of outdoor transparent screens include:

1. Transparency: Unlike traditional TV screens, outdoor transparent screens possess the ability to transmit light, allowing objects behind them to remain visible. This feature enables shops to showcase advertising content without obstructing the view of products within the window, thereby capturing the attention of passersby while facilitating unimpeded observation and selection of merchandise.

2. High-Definition Display: Leveraging advanced display technology, outdoor transparent screens can deliver high-definition visuals under varying lighting conditions. This results in enhanced clarity of advertising and product details, as well as more vibrant colors, elevating the overall visual appeal and brand image of the showcased items.

3. Interactivity: Outdoor transparent screens offer interactive functionality, enabling viewers to engage with the displayed content. Through touch screens and other interactive devices, audiences can access product information, virtually try on clothing and makeup, and make online purchases, thereby enhancing their participation and enjoyment in the shopping experience.

4. Flexibility and Customization: Unrestricted by physical location, outdoor transparent screens can be installed on diverse surfaces such as billboards, shop windows, and architectural facades. Furthermore, these screens can be tailored in size and shape to suit specific requirements, allowing for versatile adaptation to different settings and needs, and enabling the creation of distinctive display effects for brands.



Outdoor transparent screens present an attention-grabbing display solution for advertising and retail shop windows, characterized by their unique transparency, high-definition display capabilities, interactivity, flexibility, and customization. These screens not only captivate customer attention and enhance brand exposure but also facilitate a more convenient and engaging shopping experience. With the ongoing evolution and widespread adoption of technology, outdoor transparent screens are poised to assume an increasingly pivotal role in advertising and retail environments.



Product specifications


Model P7.81-7.81 Outdoor Transparent LED display
Pixel pitch 7.81-7.81mm
LED pixel 1R1G1B
Module size 500*125mm
Pixel type Full color
LED type SMD1921
Pixel density 16384 dots/m²
Driving IC Constant Current Driving
Power supply voltage 5V
Working temperature  -30℃ - +50℃
Panel material Aluminum
Panel color Black
Scan mode 1/8 scan
Panel size 1000*500mm
Panel resolution 128*64
Module quantity 8 pcs
Brightness 3000-5000cd/㎡
Horizontal viewing angle 140 degree
Vertical viewing angle 140 degree
Flatness <1mm
Module gap <1mm
Cabinet weight 9kg
Max power/㎡ 1000W
Average power/㎡ 450W
Refresh frequency 1920/3840Hz
Gray level 16 bits
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Mean time between failures >5000 hours
Lifetime >100000 hours





Transparency

    Allows light penetration, showcasing content while maintaining visibility of objects behind the screen.

High-Definition Display

    Delivers crisp visuals and vibrant colors under various lighting conditions.

Flexibility and Customization

    Can be installed on diverse surfaces and tailored in size and shape to suit specific requirements.
